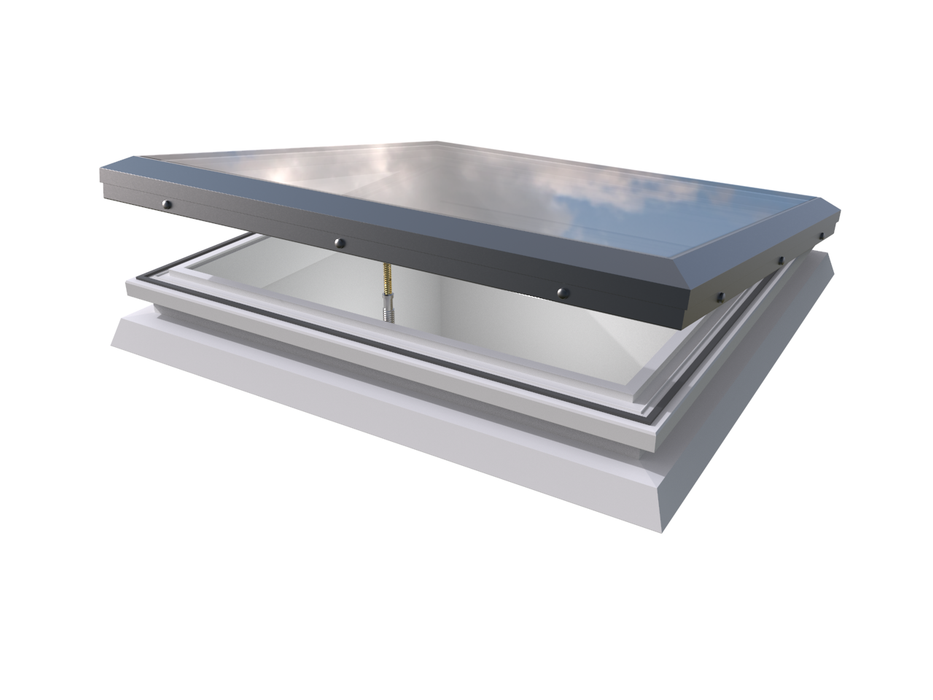

Brett Martin Flat Glass Rooflight Manual Hinge to Suit Builders Kerb

Let fresh air and daylight in – without compromising on sleek style or thermal performance.

This product is made to order

Original price £694.99 - Original price £1,164.99
Original price
£694.99
£694.99 - £1,164.99
Current price £694.99
Size (mm): 600 x 600
Colour: Black
SKU

Description

If you're looking for a streamlined way to add light and ventilation to your project, this manually opening flat glass rooflight from Brett Martin delivers on every front. Made in the UK and built to last, it’s perfect for flat roofs where you want the option of ventilation without any fuss.

This unit is designed to mount directly to your existing builder’s kerb and includes a smooth manual opening mechanism operated via the included 1m worm gear handle. Ideal for kitchens, stairwells, hallways or workspaces, it adds comfort and clarity wherever it’s installed.

Manufactured with laminated safety glass, thermally broken aluminium framing, and secure hinges on the long side, it’s a practical, secure, and elegant option trusted by trade pros and homeowners alike.

Key Features at a Glance:

  • Manually hinged rooflight designed to fit directly to a builder’s timber kerb
  • Secure worm gear opening with a 1m operating rod included
  • Fully sealed double glazed unit with laminated Low-E inner pane
  • Powder-coated thermally broken aluminium frame in RAL 7016 Anthracite Grey
  • Delivered fully assembled and locked shut for straightforward installation
  • Centre pane U-value of 1.1 W/m²K for strong thermal performance
  • Non-fragile to CWCT TN67 Class 1 and ACR[M]001 Class B
  • Secured by Design accredited with P4A impact resistance to EN 356
  • Supplied with all fixings and built to suit roof pitches between 2° and 15°

All rooflights are made to order and non-returnable. Please double-check sizing and specs before purchase.

Technical Details

Specification Detail
Application Flat roofs – suitable for domestic, commercial, and public buildings
Operation Manual opening via worm gear (1m rod included)
Outer Pane 6mm toughened safety glass
Inner Pane 7.5mm laminated Low-E glass with 1.5mm PVB interlayer
Glazing Cavity 90% Argon-filled with warm-edge spacer bar
Thermal Performance Centre pane U-value: 1.1 W/m²K
Acoustic Performance Up to 39 dB Rw airborne noise reduction
Security Rating P4A impact resistance (EN 356), Secured by Design certified
Non-Fragility CWCT TN67 Class 1 & ACR[M]001 Class B
Frame Finish RAL 7016 Anthracite Grey (powder-coated, thermally broken aluminium)
Kerb Compatibility 100mm high PVC DF kerb supplied – suits 75mm wide timber builder’s kerb
Roof Pitch 2° to 15° (minimum pitch may vary by size)
Warranty 10 years on unit / 5 years on glass
Delivery Time Dispatched in approx. 5 working days (mainland UK)

Measuring for Your Rooflight

This unit is designed to fit directly onto your existing builder’s timber kerb using the supplied 100mm high PVC DF adaptor kerb. Simply measure the external weathered size of your kerb and order the matching size.

Example: If your kerb measures 900mm x 900mm externally, order the 900mm x 900mm unit.

Installation Requirements:

  • Roof pitch between 2°–15° (minimum pitch varies depending on unit size – see matrix in installation guide)
  • Kerb width should be approximately 75mm
  • Hinges located on the long side, opening from the highest point

Need a hand confirming your roof pitch or kerb setup? Our team’s always here to help.

Product Documents

Product Overview

Technical Datasheet

Installation Guide

Plasterboard Installation Guide

Installation Guide for Plasterboard

Delivery & Lifting Information

We aim to dispatch standard sizes within 2–3 working days to mainland UK addresses.

Important: Off-loading is the responsibility of the customer. Please ensure you have adequate manpower or equipment on-site, especially for larger units.

Pre-Order Technical Notice
