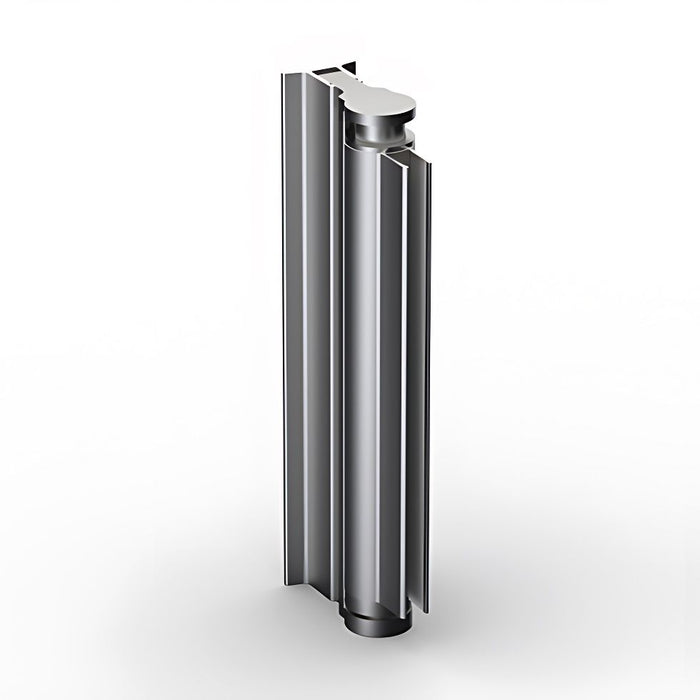

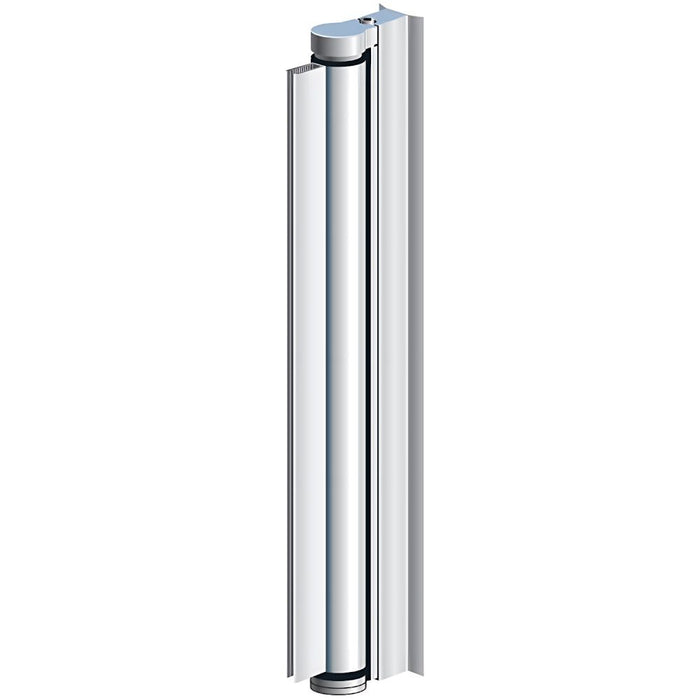

Wall Mounted Pivot Hinge For Bath or Shower Screen

Write a review

A sleek and stylish wall mounted wall profile hinge for 6mm or 8mm glass bath and shower screens.

Save £42.00 Save £30.00
Original price £199.99
Original price £199.99 - Original price £279.99
Original price £199.99
Current price £169.99
£169.99 - £237.99
Current price £169.99
Glass thickness: 6mm
Colour: Aluminium

  • Length:
    • For 6mm Glass: 1900mm (can be cut to required size)
    • For 8mm Glass: 2200mm (can be cut to required size)
  • Glass Thickness: 6mm, 8mm
  • Material: Aluminium

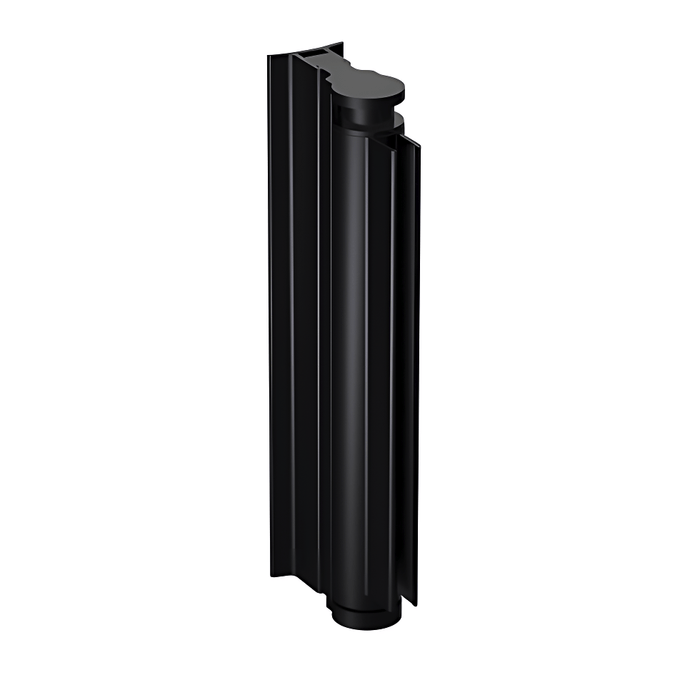

  • Finish: Polished Aluminium, Satin Anodised Matt Black
  • Max Glass Size:
    • For 6mm glass: L 1900mm x W 800mm
    • For 8mm glass: L 2187mm x W 800mm
  • Maximum Load Capacity:
    • For 6mm glass: 23kg
    • For 8mm glass: 36kg

Description

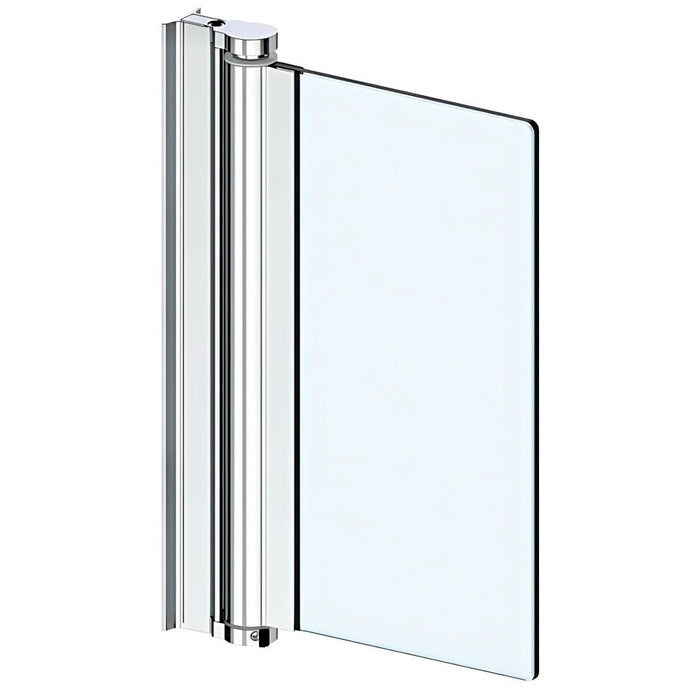

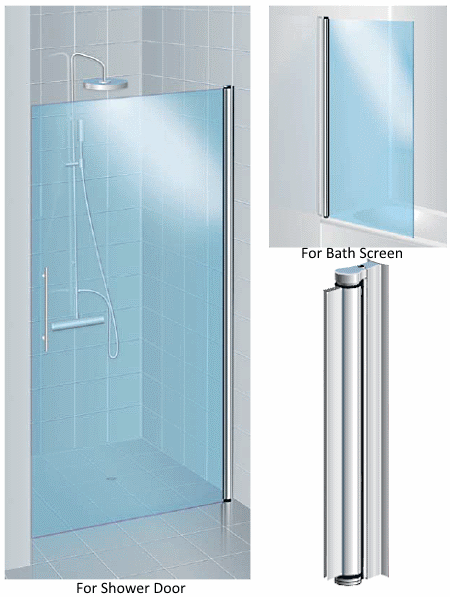

Premium wall profile hinge with 5mm lift-up function for 6mm or 8mm glass bath screen or shower door.

With no glass drilling or cut-outs required, this wall profile hinge can be mounted on either side, allowing both left and right-handed users to be comfortable.

Wall Profile Hinge Features

  • Open Direction: Swinging both ways. Hold open at 90° opening
  • Adjustable Zero Position: Yes
  • Glass Fabrication Requirements: No hole drilling or cut-outs required. Use Silicone Mastic to secure glass panel

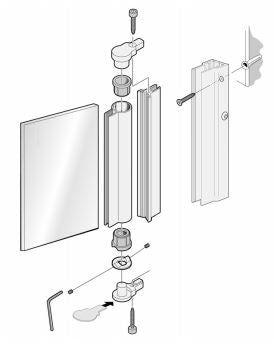

What's Included

  • 1x Wall Profile Hinge
  • 1x Intermediate Profile
  • 1x Glass profile
  • 1x Accessory Pack:
    • Top Pivot Cap
    • Bottom Pivot Cap
    • Fixings
    • Instructions

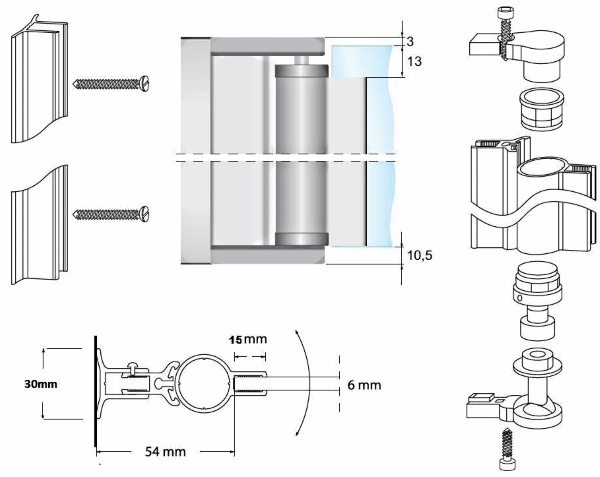

Hinge installation guide for 6mm glass

Hinge installation guide for 8mm glass
