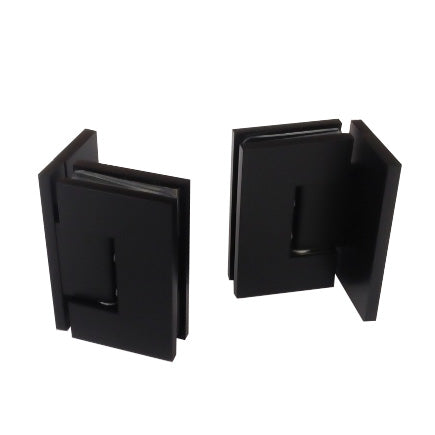

Wall mounted glass door hinge with concealed fixings. 90 Degree opening in both directions, with automatic closing when open less than 25 degrees. Product includes necessary glazing gaskets.
Product Code NKE-H01
65mm (w) x 90mm (h), with 50mm (d) biased fixing plate
Suitable for 8 to 10mm toughened glass. Glass preparation & reduction required (see product drawings)
All visible components in chrome plated brass.
Suitable for indoor and outdoor use (not suitable for marine environments).
Suitable for shower enclosures, wet rooms, bath screens, and glass doors.
Using 2 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 45kg
Using 3 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 57kg
Clamping screws to be tightened to 8-10 Nm
