Product Description

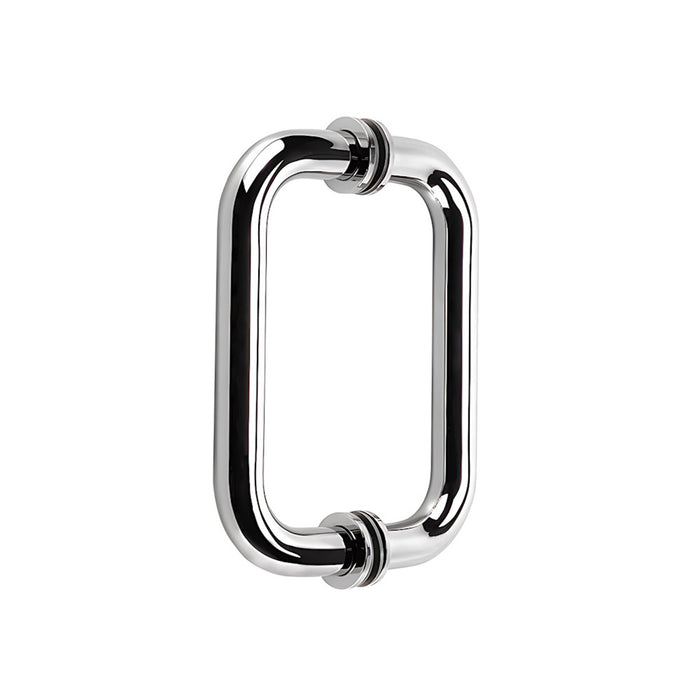

154mm Hole Centers, Rolled Tubular Double Pull Handle. Pull Handle complete with threaded inserts and grub screws. Pull Handle supplied with all necessary glazing washers and fixings.
Product Code EGW-GGA-P03
Product Dimensions

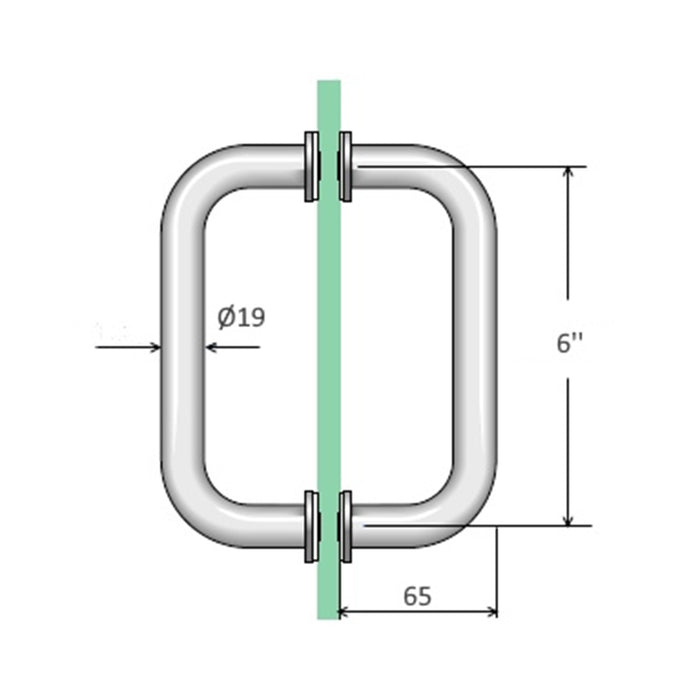

Diameter 19mm x 154mm holes centers (h) x 43mm internal cavity (w)
Glass/Door Specification
Suitable for 6 to 15mm Glass/Frame Thickness as standard. (Glass Preparation Required - See Technical Drawing)
NOTE – This Pull Handle can be utilised on Thicker Glass/Door Frames, however longer M8 fixings will be required
Material Specification
These Pull Handles are supplied in Grade 316 Polished Stainless Steel
Environment Compatibility
Suitable for Indoor and Outdoor Use
Design Compatibility
Suitable for Shower Enclosures, Wet Rooms, Bath Screens, Internal Doors and External Doors.
