Product Description

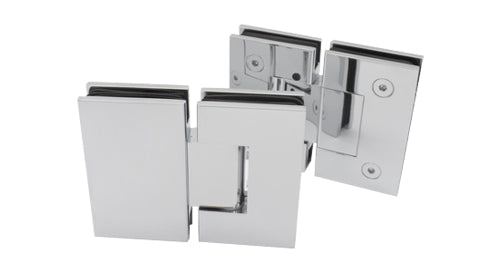

Glass to glass hinge, 90 Degree opening in both directions with automatic closing when open less than 25 degrees.
Product Code NKE-4273
Product Dimensions
115mm (w) x 90mm (h)
Glass Specification
Suitable for 8 to 10mm Toughened Glass. Glass preparation & reduction required (see product drawings).
Material Specification
All visible components in chrome plated brass.
Environment Compatibility
Suitable for indoor and outdoor use (not suitable for marine environments).
Design Compatibility
Suitable for shower enclosures, wet rooms, bath screens, and glass doors.
Hinge Capacity
Using 2 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 45kg
Using 3 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 57kg
Clamping screws to be tightened to 8-10 Nm
