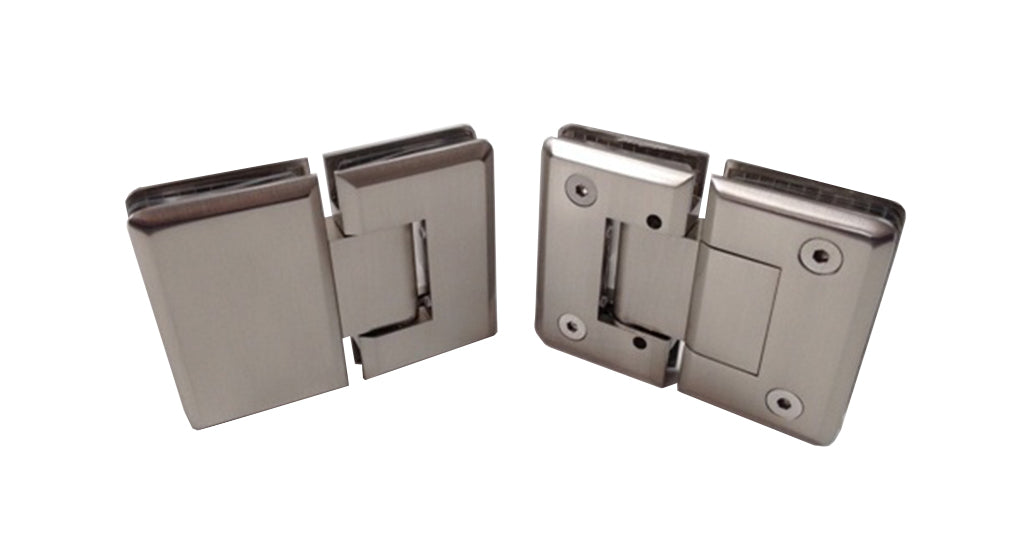

90 Degree Opening in Both Directions, with Automatic Closing when open less than 25 degrees. Product Includes necessary Allen Keys and Glazing Washers.
Product Code APH-H02-S
115mm (w) x 90mm (h)
Suitable for 8 to 10mm Toughened Glass. Glass Preparation & Reduction Required (see product drawings)
All Components in Brushed Nickel Plated Brass
Suitable for indoor and outdoor use (not suitable for marine environments).
Suitable for Shower Enclosures, Wet Rooms, Bath Screens, and Glass Doors.
Using 2 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 45kg
Using 3 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 57kg
Clamping screws to be tightened to 8-10 Nm
