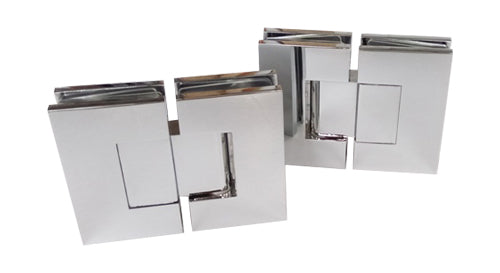

Inline Glass to Glass Hinge with Concealed Fixings

Inline Glass to Glass Hinge with Concealed Fixings

Regular price
£52.50
Sale price
£52.50
Regular price
£52.50
Sold out
Unit price
per
Tax included.



Product Description

90 Degree Opening in Both Directions, with Automatic Closing when open less than 25 degrees. Product Includes necessary Glazing Washers.

Product Code NKE-H02

Product Dimensions

114mm (w) x 90mm (h)

Glass Specification

Suitable for 8 to 10mm Toughened Glass. Glass Preparation & Reduction Required (see product drawings)

Material Specification

All Components in Chrome Plated Brass

Environment Compatibility

Suitable for indoor and outdoor use (not suitable for marine environments).

Design Compatibility

Suitable for Shower Enclosures, Wet Rooms, Bath Screens, and Glass Doors.

Hinge Capacity

Using 2 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 45kg

Using 3 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 57kg

Clamping screws to be tightened to 8-10 Nm
