Product Description

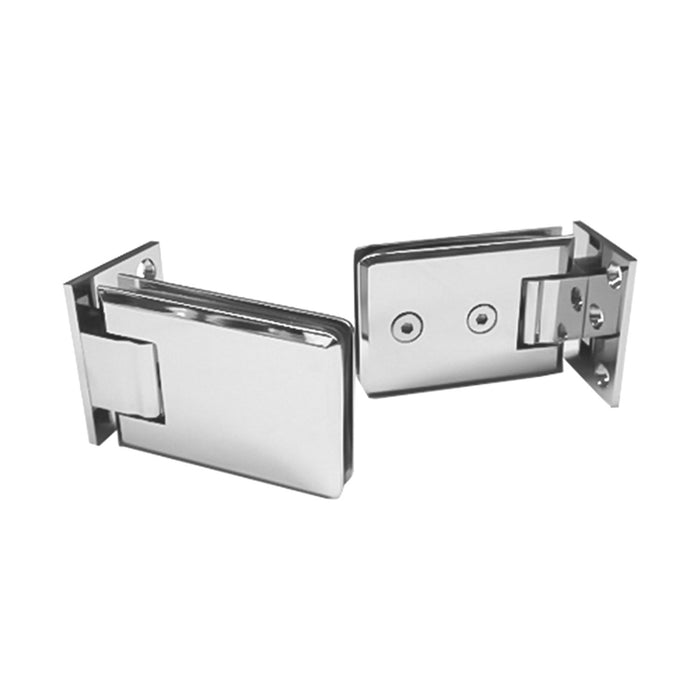

Wall Mounted, Glass Door Hinge. 90 Degree Opening in Both Directions, with Automatic Closing when open less than 25 degrees. Product Includes necessary Allen Keys and Glazing Washers. Fixing Screws provided as standard, however alternative fixings may be required subject to application and structural requirements.
Product Code APH-H03
Product Dimensions
64mm (w) x 90mm (h), with 50mm (d) central Fixing Plate
Glass Specification
Suitable for 8 to 10mm Toughened Glass. Glass Preparation & Reduction Required (see product drawings)
Material Specification
All Components in Chrome Plated Brass
Environment Compatibility
Suitable for indoor and outdoor use (not suitable for marine environments).
Design Compatibility
Suitable for Shower Enclosures, Wet Rooms, Bath Screens, and Glass Doors.
Hinge Capacity
Using 2 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 45kg
Using 3 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 57kg
Clamping screws to be tightened to 8-10 Nm
